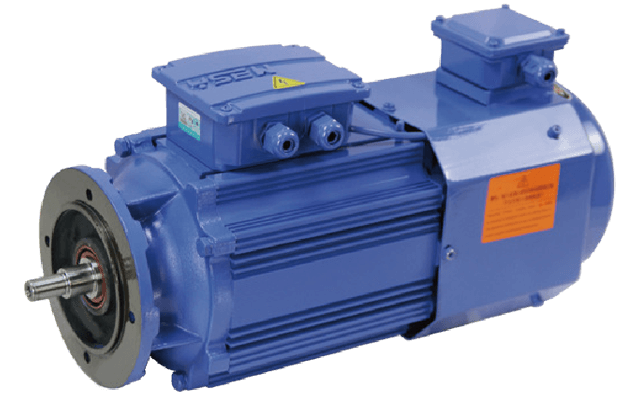

硬齿面R、S、F、K系列减速机专用YE2/YE3系列三相异步电动机是我公司为满足减速机特性需要专门设计的电动机。机座材料为铝拉伸和铸铁两种,在凸缘端结构和轴承座上都做了改进和调节。在同一型号中可和多种凸缘盖搭配,满足不同安装尺寸的要求。选用工字型凸缘端盖,转轴进行调质处理,同时加大轴承档次,可以提高轴承承载能力,增加安全系数及电机使用寿命。
三相变频电源
工作制
防护等级
使用条件:
环境温度 | -15℃~40℃ | 海拔 | 不超过1000米 | 额定电压 | 380V(其它电压需另订协议) | 额定频率 | 50Hz、60Hz |
工作制 | 连续工作制(S1) | 防护等级 | IP54/IP55 | 绝缘等级 | F级 | 冷却方式 | IC0141(风扇自扇冷却) |
硬齿面R、S、F、K系列减速机专用YE2/YE3系列三相异步电动机是我公司为满足减速机特性需要专门设计的电动机。机座材料为铝拉伸和铸铁两种,在凸缘端结构和轴承座上都做了改进和调节。在同一型号中可和多种凸缘盖搭配,满足不同安装尺寸的要求。选用工字型凸缘端盖,转轴进行调质处理,同时加大轴承档次,可以提高轴承承载能力,增加安全系数及电机使用寿命。
技术参数
型 号 Type | 功 率 kW | 额定电流 Current A | 转速 r/min | 额定转矩 N.m | 转动惯量 (kg·m 2) | 轴流风机 | 恒转矩 Constant Torque Hz | 恒功率 Constant Output Hz | |
电压 (V) | 功率 (W) | ||||||||
同步转速 1500r/min | |||||||||
71M1-4 | 0.25 | 0.81 | 1330 | 1.8 | 0.012 | 380 | 50 | 3~50 | 50~100 |
71M2-4 | 0.37 | 1.1 | 1330 | 2.66 | 0.012 | 380 | 50 | 3~50 | 50~100 |
80M1-4 | 0.55 | 1.48 | 1390 | 3.67 | 0.012 | 380 | 50 | 3~50 | 50~100 |
80M2-4 | 0.75 | 1.88 | 1390 | 5.01 | 0.012 | 380 | 50 | 3~50 | 50~100 |
90S-4 | 1.1 | 2.67 | 1390 | 7.35 | 0.012 | 380 | 50 | 3~50 | 50~100 |
90L-4 | 1.5 | 3.48 | 1390 | 10 | 0.012 | 380 | 50 | 3~50 | 50~100 |
100L1-4 | 2.2 | 4.90 | 1410 | 14.6 | 0.012 | 380 | 50 | 3~50 | 50~100 |
112M1-4 | 3.0 | 6.8 | 1435 | 20.0 | 0.012 | 380 | 55 | 3~50 | 50~100 |
112M2-4 | 4.0 | 8.9 | 1435 | 26.6 | 0.014 | 380 | 55 | 3~50 | 50~100 |
132M1-4 | 5.5 | 11.7 | 1445 | 36.3 | 0.031 | 380 | 55 | 3~50 | 50~100 |
132M2-4 | 6.3 | 13.1 | 1445 | 41.6 | 0.041 | 380 | 55 | 3~50 | 50~100 |
160M1-4 | 7.5 | 16.0 | 1455 | 49.2 | 0.07 | 380 | 80 | 3~50 | 50~100 |
160M2-4 | 11 | 23.4 | 1455 | 72.2 | 0.092 | 380 | 80 | 3~50 | 50~100 |
160L-4 | 15 | 30.5 | 1455 | 98.5 | 0.117 | 380 | 80 | 3~50 | 50~100 |
180L-4 | 22 | 43.2 | 1465 | 143 | 0.198 | 380 | 80 | 3~50 | 50~100 |
200L-4 | 30 | 58.3 | 1475 | 194 | 0.346 | 380 | 150 | 3~50 | 50~100 |
225M-4 | 37 | 70.3 | 1480 | 239 | 0.665 | 380 | 200 | 3~50 | 50~100 |
250M1-4 | 45 | 86.5 | 1480 | 290 | 0.789 | 380 | 230 | 3~50 | 50~100 |
250M2-4 | 55 | 104.5 | 1480 | 355 | 0.892 | 380 | 230 | 3~50 | 50~100 |
280S1-4 | 63 | 121.1 | 1485 | 405 | 1.468 | 380 | 320 | 3~50 | 50~100 |
280S2-4 | 75 | 141.3 | 1485 | 482 | 1.631 | 380 | 320 | 3~50 | 50~100 |
280M-4 | 90 | 166.9 | 1485 | 579 | 1.955 | 380 | 320 | 3~50 | 50~100 |
315S1-4 | 110 | 205.7 | 1485 | 707 | 3.979 | 380 | 370 | 3~50 | 50~100 |
315M-4 | 132 | 243.9 | 1485 | 849 | 4.544 | 380 | 370 | 3~50 | 50~100 |
355M-4 | 160 | 290.8 | 1490 | 1026 | 7.405 | 380 | 370 | 3~50 | 50~100 |
355L1-4 | 200 | 353.6 | 1490 | 1282 | 8.767 | 380 | 600 | 3~50 | 50~100 |
355L2-4 | 250 | 441.9 | 1490 | 1602 | 10.296 | 380 | 600 | 3~50 | 50~100 |
同步转速 1000r/min | |||||||||
112M1-6 | 1.5 | 3.9 | 940 | 15.2 | 0.013 | 380 | 55 | 3~50 | 50~100 |
112M2-6 | 2.2 | 5.6 | 940 | 22.4 | 0.017 | 380 | 55 | 3~50 | 50~100 |
132M1-6 | 3 | 7.4 | 960 | 29.8 | 0.035 | 380 | 55 | 3~50 | 50~100 |
132M2-6 | 4 | 9.6 | 960 | 39.8 | 0.046 | 380 | 55 | 3~50 | 50~100 |
160M1-6 | 5.5 | 12.5 | 965 | 54.4 | 0.086 | 380 | 80 | 3~50 | 50~100 |
160M2-6 | 7.5 | 17.0 | 965 | 74.2 | 0.11 | 380 | 80 | 3~50 | 50~100 |
160L-6 | 11 | 24.3 | 965 | 109 | 0.145 | 380 | 80 | 3~50 | 50~100 |
180L-6 | 15 | 32.0 | 975 | 147 | 0.253 | 380 | 80 | 3~50 | 50~100 |
200L-6 | 22 | 47.0 | 980 | 214 | 0.482 | 380 | 150 | 3~50 | 50~100 |
225M-6 | 30 | 59.3 | 985 | 291 | 0.785 | 380 | 200 | 3~50 | 50~100 |
250M1-6 | 37 | 71.1 | 980 | 361 | 1.153 | 380 | 230 | 3~50 | 50~100 |
250M2-6 | 45 | 86.4 | 980 | 439 | 1.351 | 380 | 230 | 3~50 | 50~100 |
280S1-6 | 55 | 106.3 | 985 | 533 | 2.227 | 380 | 320 | 3~50 | 50~100 |
280S2-6 | 63 | 120.3 | 985 | 611 | 2.477 | 380 | 320 | 3~50 | 50~100 |
280M-6 | 75 | 140.8 | 985 | 727 | 2.857 | 380 | 320 | 3~50 | 50~100 |
315S1-6 | 90 | 172.1 | 990 | 868 | 5.216 | 380 | 370 | 3~50 | 50~100 |
315M-6 | 110 | 209.6 | 990 | 1061 | 5.887 | 380 | 370 | 3~50 | 50~100 |
355M-6 | 132 | 251.0 | 990 | 1273 | 9.726 | 380 | 600 | 3~50 | 50~100 |
355L1-6 | 160 | 302.6 | 990 | 1543 | 10.957 | 380 | 600 | 3~50 | 50~100 |
355L2-6 | 200 | 373.9 | 990 | 1929 | 13.1 | 380 | 600 | 3~50 | 50~100 |
400L1-6 | 250 | 473.2 | 990 | 2388 | 22.8 | 380 | 2200 | 3~50 | 50-100 |
400L2-6 | 300 | 567.8 | 990 | 2865 | 25.8 | 380 | 2200 | 3~50 | 50-100 |
同步转速 750r/min | |||||||||
132M1-8 | 2.2 | 6.0 | 710 | 29.6 | 0.035 | 380 | 55 | 3~50 | 50~100 |
132M2-8 | 3 | 8.1 | 710 | 40.4 | 0.046 | 380 | 55 | 3~50 | 50~100 |
160M1-8 | 4 | 10.0 | 720 | 53.1 | 0.082 | 380 | 80 | 3~50 | 50~100 |
160M2-8 | 5.5 | 13.8 | 720 | 73.0 | 0.11 | 380 | 80 | 3~50 | 50~100 |
160L-8 | 7.5 | 18.1 | 720 | 99.5 | 0.149 | 380 | 80 | 3~50 | 50~100 |
180L-8 | 11 | 26.3 | 725 | 145 | 0.253 | 380 | 80 | 3~50 | 50~100 |
200L-8 | 15 | 36.0 | 730 | 196 | 0.461 | 380 | 150 | 3~50 | 50~100 |
225M-8 | 22 | 49.5 | 725 | 290 | 0.808 | 380 | 200 | 3~50 | 50~100 |
250M1-8 | 30 | 64.2 | 735 | 390 | 1.227 | 380 | 230 | 3~50 | 50~100 |
250M2-8 | 37 | 78.2 | 735 | 481 | 1.45 | 380 | 230 | 3~50 | 50~100 |
280S1-8 | 45 | 96.5 | 740 | 581 | 2.519 | 380 | 320 | 3~50 | 50~100 |
280M-8 | 55 | 115.8 | 740 | 710 | 2.978 | 380 | 320 | 3~50 | 50~100 |
315S1-8 | 63 | 134.0 | 740 | 813 | 6.255 | 380 | 370 | 3~50 | 50~100 |
315S2-8 | 75 | 157.4 | 740 | 968 | 7.036 | 380 | 370 | 3~50 | 50~100 |
315M-8 | 90 | 188.5 | 740 | 1162 | 7.908 | 380 | 370 | 3~50 | 50~100 |
355M-8 | 110 | 227.9 | 740 | 1420 | 9.792 | 380 | 600 | 3~50 | 50~100 |
355L1-8 | 132 | 272.1 | 740 | 1704 | 11.588 | 380 | 600 | 3~50 | 50~100 |
355L2-8 | 160 | 329.8 | 740 | 2065 | 13.781 | 380 | 600 | 3~50 | 50~100 |
400L1-8 | 200 | 399.5 | 745 | 2547 | 22.8 | 380 | 2200 | 3~50 | 50-100 |
400L2-8 | 250 | 499.3 | 745 | 3183 | 25.8 | 380 | 2200 | 3~50 | 50-100 |
同步转速 600r/min | |||||||||
280S-10 | 37 | 88 | 590 | 599 | 2.519 | 380 | 320 | 3~50 | 50~100 |
280M-10 | 45 | 107 | 590 | 728 | 2.978 | 380 | 320 | 3~50 | 50~100 |
315S1-10 | 55 | 126.8 | 590 | 890 | 6.428 | 380 | 370 | 3~50 | 50~100 |
315S2-10 | 63 | 144.5 | 590 | 1020 | 7.036 | 380 | 370 | 3~50 | 50~100 |
315M-10 | 75 | 168.8 | 590 | 1214 | 7.908 | 380 | 370 | 3~50 | 50~100 |
355M-10 | 90 | 203.8 | 595 | 1445 | 9.646 | 380 | 600 | 3~50 | 50~100 |
355L1-10 | 110 | 246.9 | 595 | 1766 | 11.588 | 380 | 600 | 3~50 | 50~100 |
355L2-10 | 132 | 292.3 | 595 | 2119 | 13.781 | 380 | 600 | 3~50 | 50~100 |
400L1-10 | 160 | 341.4 | 595 | 2550 | 23.6 | 380 | 2200 | 3~50 | 50-100 |
400L2-10 | 200 | 426.7 | 595 | 3183 | 25.2 | 380 | 2200 | 3~50 | 50-100 |
